The display lights up, the battery reads full, the throttle does nothing and the motor makes no sound at all. That description sends most people straight to the controller, the most expensive part in the chain. Quite often the cause is a small switch in the brake lever, doing exactly what it was designed to do — at the wrong moment.
What the brake cutoff is supposed to do
Almost every e-bike built in the last decade cuts motor power the instant you touch a brake lever. The point is simple: if the motor and the brakes ever fight each other, the brakes should win. A small sensor in or near the lever tells the controller "the rider is braking," and the controller stops driving the motor until the signal clears.

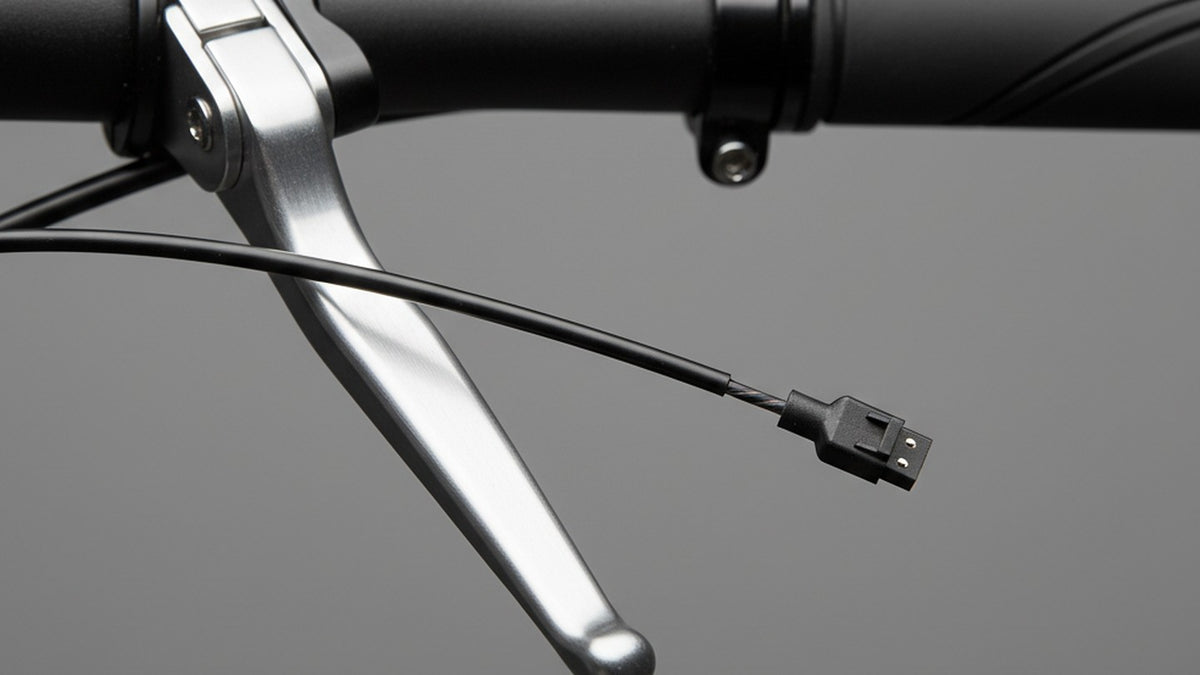

On hydraulic systems the sensor is usually built into the lever body; on mechanical disc or rim setups it is often a separate switch clamped near the lever, sometimes with a small magnet on the moving part. Either way it is a low-current signal wire, not part of the power path — which is why a fault here kills the drive without blowing a fuse or producing heat, smell, or visible damage.
Why a stuck sensor looks like a dead controller
The failure that causes trouble is not a sensor that stops working. It is a sensor that reports braking all the time. The controller obeys, the motor stays silent, and every other symptom looks healthy: the display is bright, the battery voltage is fine, the wheel spins freely by hand. Nothing points at the brakes, because you are not touching the brakes.
Four things produce that state, and none of them require a broken part:
- A lever that does not fully return — dirt, a dry pivot, a bent blade, or a bar-end plug pressing on it
- A cable or hose routed tight enough to hold slight tension all the time
- Water in the sensor connector, bridging the contacts
- A sensor that has drifted out of position relative to its magnet, if yours uses one
Three of those four are free to fix. That is the argument for checking here first rather than last.
The two-minute check, before you buy anything
Start with your hands, not a meter. Squeeze each lever fully and let it snap back, watching the blade return all the way to rest — both sides, because either one cuts power on its own. Work it through its travel a few times and feel for a sticky spot. Check that nothing on the handlebar rests against the lever, and that the cable or hose is not pulled tight when the bars turn.
Then unplug one brake sensor connector and try the throttle, with the rear wheel off the ground. If the motor wakes up, you have found your side. Repeat for the other.
One caution worth stating plainly: unplugging does not behave the same way on every bike. Some systems read an open connector as "not braking" and run normally; others read it as "braking" and stay silent. Both designs exist and are in current use, so treat the result as information about your bike rather than a universal rule — if unplugging changes nothing, that does not clear the sensor. Confirm which way yours behaves before drawing a conclusion from it.
Testing the sensor itself
A multimeter settles it. Disconnect the sensor, set the meter to continuity or resistance, and put a probe on each of the two sensor contacts. Work the lever slowly and watch for a clean change of state — connected to open, or open to connected — that happens at the same point in the lever travel every time, and that holds steady when the lever is at rest.
What you are looking for is the transition, not a particular number. A sensor that never changes state, changes only sometimes, or flickers while the lever sits still has failed and should be replaced. If both sensors switch cleanly and the motor is still silent, the brakes are cleared and the search moves on — to the throttle, the wiring, or further up the power chain. If you are new to the meter, the basic measurements guide covers the settings.
The one repair not to make
It is tempting, once you have traced a no-power fault to a brake sensor, to leave it unplugged and ride. Please do not. That removes a safety function to fix a convenience problem, on a vehicle heavy enough and quick enough that the function exists for a reason. Replacement sensors are among the cheapest parts on the bike.
Whatever you replace, test the cutoff before the first ride: wheel off the ground, power on, throttle just enough to spin it, then squeeze each lever and confirm the motor stops immediately. Both sides, every time. If that check does not pass, the bike is not ready to ride.
None of this makes the brake sensor an interesting part. It makes it a cheap one to rule out, ahead of a controller decision you cannot undo. Ten minutes of looking and one meter reading is a fair price for not buying the wrong component — and the same habit pays off when the symptom is missing assist rather than no power, where a stuck lever ranks high too.
