Five Multimeter Measurements Every E-Bike Owner Should Know

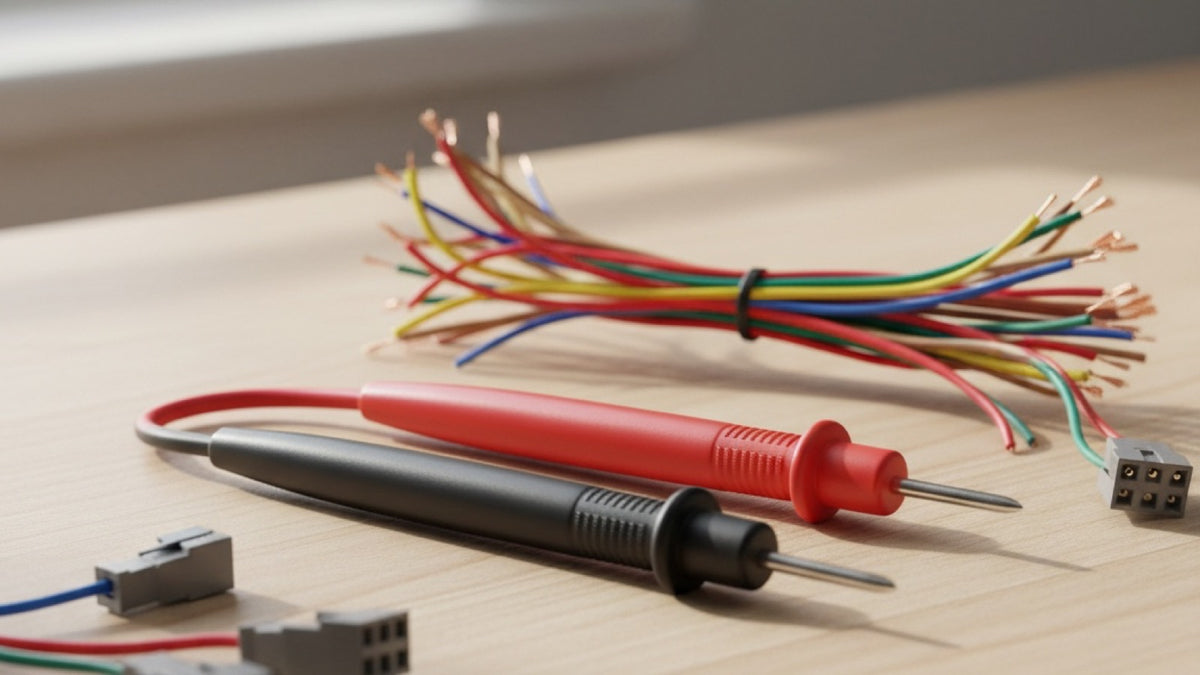

A red and black test probe lying on a light wood bench beside a tied bundle of colored wires with stripped copper ends and several unplugged multi-pin connectors.

A multimeter is the cheapest diagnostic tool an e-bike owner can own, and it settles questions guesswork cannot. It answers three things reliably: is this part dead, is this wire broken, is this signal moving. Those three cover most of what goes wrong electrically on a hub-motor bike.

Five worth knowing, each under two minutes once the covers are off.

Before you probe anything

Set the meter to DC volts for anything involving power, and to the continuity setting — the one with the audible beep — for anything involving broken wires. Never put the meter on the current setting across a battery pack: that places a near-short across the cells through a fuse rated for a tiny fraction of what a pack can deliver. Work with the pack disconnected wherever a test allows it, and keep the wheel off the ground when it does not.

1. Pack voltage at rest

Measure across the battery output with the pack switched on and nothing drawing from it. What matters is not the label number but the resting voltage relative to it.

Lithium cells sit near 4.2 V each at full charge and around 3.0 V each when empty. A 36 V pack is commonly ten cells in series, 48 V thirteen, and 52 V fourteen — putting full charge in the region of 42 V, 54.6 V and 58.8 V. Confirm the series count for your own pack rather than assuming it, because chemistry and BMS cutoff points vary between builds.

A pack reading well below nominal straight off the charger has a cell or charging fault, not a controller fault. A pack that reads fine at rest but collapses on a hill is a different problem, and it shows up as cutting out while riding.

2. Continuity through fuses and connectors

Switch to continuity, disconnect the section under test, and touch one probe to each end. A beep means the path is intact. Silence means it is not.

This is the fastest way to clear a dead bike: inline fuses, the main power switch, and any connector that has been wet or vibrating. Corrosion is the awkward one, because a pin can read open while the housing still looks perfect — which is why looking at the pins matters as much as the reading. If the whole bike is dark, walk the power chain in order instead of jumping to the controller; there is a checklist for that.

3. The hall sensor supply and signals

Motor cables split into three thick phase wires and five thin sensor wires. Among the five, red carries 5 V, black is ground, and yellow, green and blue carry the three hall signals.

With the system powered and the wheel off the ground, measure red to black. You should see close to 5 V. If that supply is missing, the controller is not feeding the sensors, and every reading downstream of it is meaningless until you fix that first.

With 5 V confirmed, measure each signal wire against black while turning the wheel slowly by hand. Each should step between roughly 0 V and 5 V as the magnets pass underneath. A signal that never moves is a dead sensor. Symptoms: juddering, harsh take-off, or a motor that runs smoothly at speed but stumbles from standstill — the last usually means the controller has fallen back to running without sensor feedback.

One limit: these readings cannot tell you whether the wires are in the right order. Wrong order produces the same juddering, and separating the two takes a systematic combination test, not a meter.

4. Throttle output sweep

A thumb or twist throttle is usually a hall device with three wires of its own: supply, ground and signal. Back-probe the signal against ground with the system on, then sweep the throttle slowly from rest to full travel.

On most units the reading climbs smoothly from under 1 V to above 4 V. The exact endpoints differ between controllers, so do not treat a specific number as pass or fail. What you want is the shape of the sweep: a reading that jumps, sticks, or drops out halfway is a failing throttle even when both endpoints look normal.

5. Brake cutoff switches

Brake levers fitted with a cutoff switch tell the controller to kill power the instant you pull them. A switch stuck in the braking state gives you a bike that powers up, lights its display, reads a healthy battery, and refuses to drive — often with no error code.

Test with continuity across the two switch wires while squeezing and releasing the lever. The state should change. If it never changes, or reads closed with the lever released, unplug that lever and try the bike. A bike that suddenly drives with the brake sensor disconnected has told you where the fault is.

What these five cannot do

A meter reads voltage and continuity. It does not read what a controller decides to do with those inputs, it does not test a pack under real load, and it cannot confirm that a replacement display will speak your controller's protocol.

What it does do is separate "this part is dead" from "this part is fine" before you spend money on either — usually the difference between buying one replacement part and buying three.
