An e-bike that jerks, stutters, or loses power from a standstill sends most owners straight to the worst conclusion: the motor is dying. Sometimes it is. But the same symptoms can come from a signal problem in the connector between the motor and the controller — and that is something you can inspect at home before spending anything.
Here is what sits inside that plug, what water does to it, and how to check it without causing damage.
What is inside the plug
A hub motor leaves the axle with two groups of wires. Three thick ones are the phase wires — typically yellow, green and blue — and they carry the current that spins the motor. Five thin ones are the hall sensor wires: red for +5V, black for ground, and yellow, green and blue for the three hall signals A, B and C.
On many bikes those eight conductors are bundled into a single moulded housing, which is why parts listings and forum threads call it a nine-pin connector. Pin counts do vary between motors, and the model name on a frame does not reliably tell you what is inside the plug. So count the conductors on your own bike and photograph the connector face before you order anything. That photograph does more work than any part number.
Why water matters most on the thin wires
The phase wires move current in the tens of amps. A little contact resistance is not what stops them. The hall wires are a different circuit: 5 volts carrying a switching signal that tells the controller where the rotor is. Water standing in a multi-pin housing bridges pins that are meant to stay separate, and deposits on a pin face add resistance to a circuit that has almost no margin. A hall signal that arrives late, distorted, or not at all produces exactly the behaviour people blame on a failed motor.
Compare the symptom lists. Power that feels present but delivers jerking, stuttering or knocking points to a hall fault or to phase and hall wires joined in the wrong order. A bike that is smooth at speed but stumbles from a stop points to a hall sensor that has stopped reporting, leaving the controller to run without it. Both descriptions fit a wet or dirty connector just as well as they fit a dead sensor inside the motor — and only one of those two costs nothing to rule out.
Inspecting it safely
Power down first, every time. Switch the system off, remove the battery, and wait thirty seconds before touching any connector. Unplugging phase wires while the system is live can arc and destroy the output stage of the controller. This step has no shortcut.
Then work in this order:
- Photograph before separating anything. Cable routing, connector positions, orientation. Those photos save an hour on reassembly.
- Separate the plug and examine both faces. Look for standing water, grit in the housing, green or white deposits on the pin faces, and pins that are bent, pushed back, or loose in their cavity.
- Dry it completely. Not mostly — a multi-pin housing traps water in the cavities, and reconnecting a damp plug puts the bridge straight back.
- Reconnect colour to colour. Yellow to yellow, green to green, blue to blue, and the same across the hall wires. Confirm the housing seats all the way home rather than resting half-engaged.
- Retest, then decide. If the jerking is gone, the connector was the fault. If nothing changed, the problem sits deeper.
If drying it does not fix the bike
When the connector is clean, dry and firmly seated but the symptoms remain, you are looking at either a wiring order problem or a sensor failure inside the motor. Those combinations can be worked through methodically: hold the phase wires fixed, try the three hall signal lines through their six orders, then change the phase arrangement and repeat. Our guide to phase and hall colour codes covers that method in detail.
Two stop conditions override everything else. If no-load current runs unusually high or any component gets hot, disconnect immediately; carrying on will damage the motor and the controller. And if the motor ever moves with no input at all, stop riding the bike and read our guide on a motor that runs by itself before going further. If the bike shows no sign of life whatsoever, the motor plug is not the place to start — work through the power chain checklist instead.
Pins that are already damaged

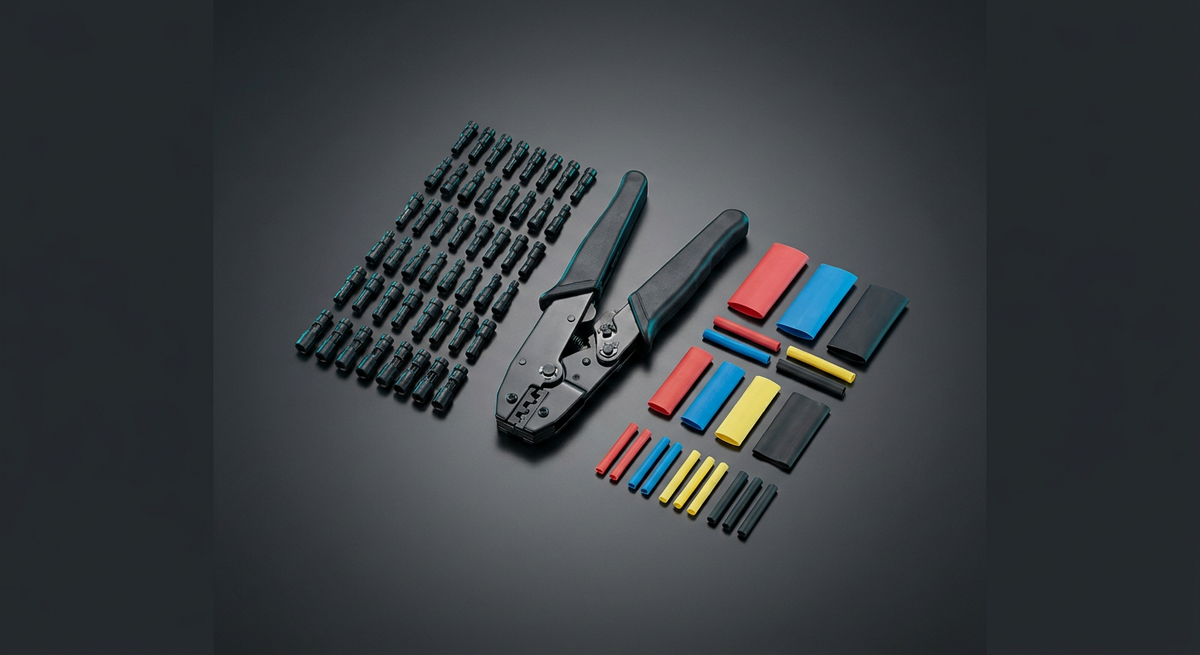

A pin corroded through, crushed flat, or pulled out of its housing does not recover with drying. That is a re-termination job: cut back to clean copper, crimp new terminals, and seal the joint with heat-shrink. A crimping kit with waterproof bullet terminals covers the work, and the repair is the same whether the damage sits on the motor side or on the harness side.
The habit worth building is smaller than any of the above: after a wash or a wet ride, check that the motor plug is seated and that no water is sitting in the housing. Connectors rarely fail without warning — they just fail quietly.
