A hall sensor fault is one of the few e-bike problems that feels dramatic and is still cheap to diagnose. The motor shudders, lurches, or refuses to spin, and the cause ranges from a corroded connector to a motor that needs replacing. That spread is too wide to guess at, and a multimeter closes it in about ten minutes.
What the hall sensors actually do
A brushless hub motor has no brushes to switch current mechanically, so the controller must know where the rotor is before energizing the right winding. Three hall-effect sensors sit inside the motor, spaced around the stator, each reporting magnet-present or magnet-absent as the wheel turns. Lose one and the timing goes wrong several times per revolution — which is exactly what a stutter is.
They live in the thin wire bundle, not the thick one. A standard hub motor leaves the axle with three heavy phase wires carrying drive current, plus five thin sensor wires: red for the supply, black for ground, and yellow, green and blue for the three signals. A ninth wire, when present, is usually a temperature sensor — see the phase and hall wiring guide.
Symptoms that point here
Hall faults have a signature worth recognizing before you open anything:
- Strong but jerky. The motor clearly has power, but it shudders, knocks, or stutters instead of pulling smoothly.
- Rough from a standstill, fine once rolling. Some controllers fall back to a sensorless mode when signals go missing: it works at speed but is weak and lumpy off the line.
- Uneven lurching pulses. A motor that surges in irregular bursts rather than accelerating smoothly.
- Dead in one wheel position. Nudge the wheel a few inches and it suddenly runs, which points at one sensor rather than all three.
If your display shows a fault code, write it down first. Codes are not standardized across brands, but many displays have a code that points at motor hall faults — the SW900 code table is one example.
Rule out the cheap causes first
Two things fail far more often than the sensors themselves, and both cost a fraction of a motor.
The first is the connector. Water in a multi-pin plug corrodes the small signal pins long before it bothers the fat phase pins, so a bike that lived outdoors deserves an inspection before a diagnosis. The second is wiring order: if the stutter started right after fitting a different motor or controller, you likely have a mismatched combination rather than a dead part, and the fix is the 36-combination procedure, not a new motor.
The test: five wires, one meter, one slow turn
Work with the wheel off the ground and the bike powered on but not in gear-engaging mode. Set the meter to DC volts. Back-probe the sensor connector on the controller side so the circuit stays connected while you measure.
- Check the supply. Black probe on the sensor ground, red probe on the supply wire. Expect a steady low-voltage rail — commonly around 5 V, though not every system uses the same one, so confirm your own rather than assuming. No supply means stop here: the fault is upstream.
- Watch each signal. Leave the black probe on ground, put the red probe on the first signal wire, and turn the wheel by hand slowly — one revolution over several seconds.
- Look for the toggle. A working sensor swings between roughly zero and roughly the supply voltage, several times per revolution. You are looking for movement, not a specific number.
- Repeat for the other two signal wires. All three should toggle, and they should toggle a similar number of times per revolution.
Reading what you get
One wire stuck at zero or stuck high while the other two toggle: that sensor has failed. All three flat while the supply is present: suspect the sensor ground or a break in the bundle before condemning the motor, because three simultaneous failures are rare. All three flat with no supply present: the problem is the controller or the harness, not the motor. Everything toggles cleanly: the halls are fine, and the stutter is coming from somewhere else — phase wiring, the controller, or a battery that sags under load.
When it does mean a new motor

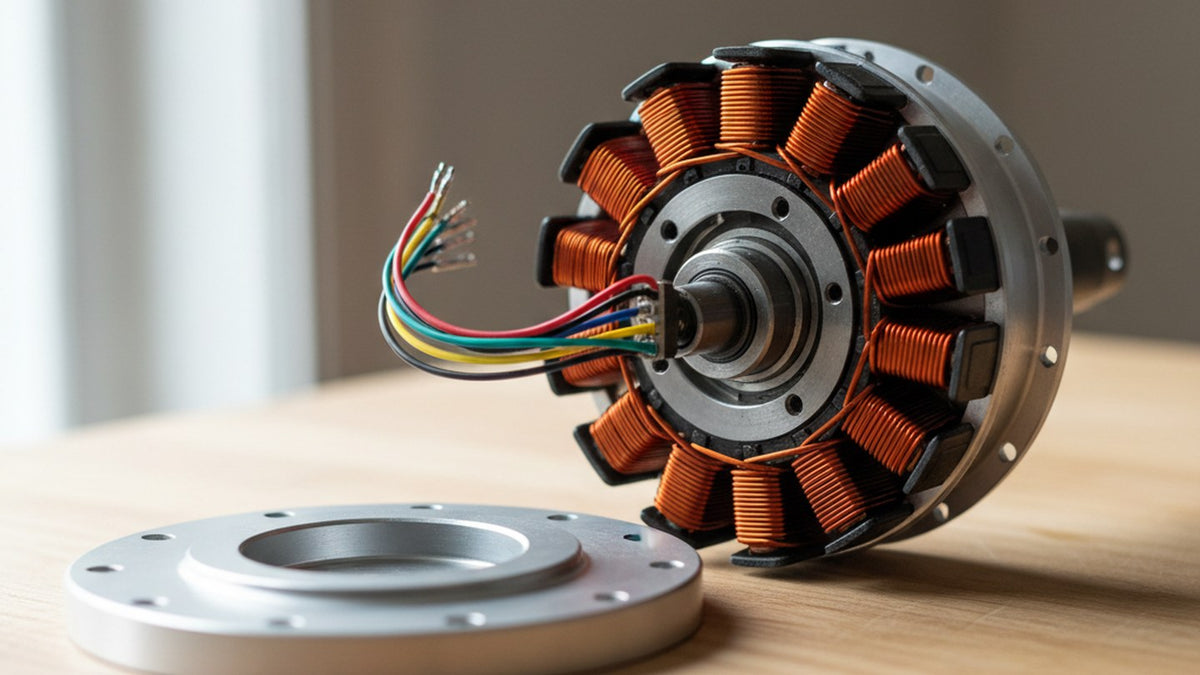

The sensors are inside the motor. Replacing them means pulling the wheel, opening the side cover, and working on the stator with a soldering iron — real work, but not exotic work. Whether it is worth doing depends on labor cost against the price of a replacement wheel, and on whether the winding itself is healthy.
There is also a middle path: some controllers run a sensorless mode that ignores the hall signals entirely. It is a genuine option when the sensors are dead but the windings are good, with a real trade-off — starts are lumpy and low-speed pull is weak, while higher-speed running is normal. For a rider who mostly cruises that can be an acceptable repair; for someone starting on hills with cargo it usually is not.
What the meter buys you is the difference between those choices: ten minutes of probing separates a corroded plug from a failed sensor from a healthy motor with a wiring fault — usually the difference between buying one part and buying three.
