Controller, Display, or Both? A Replacement Decision Guide

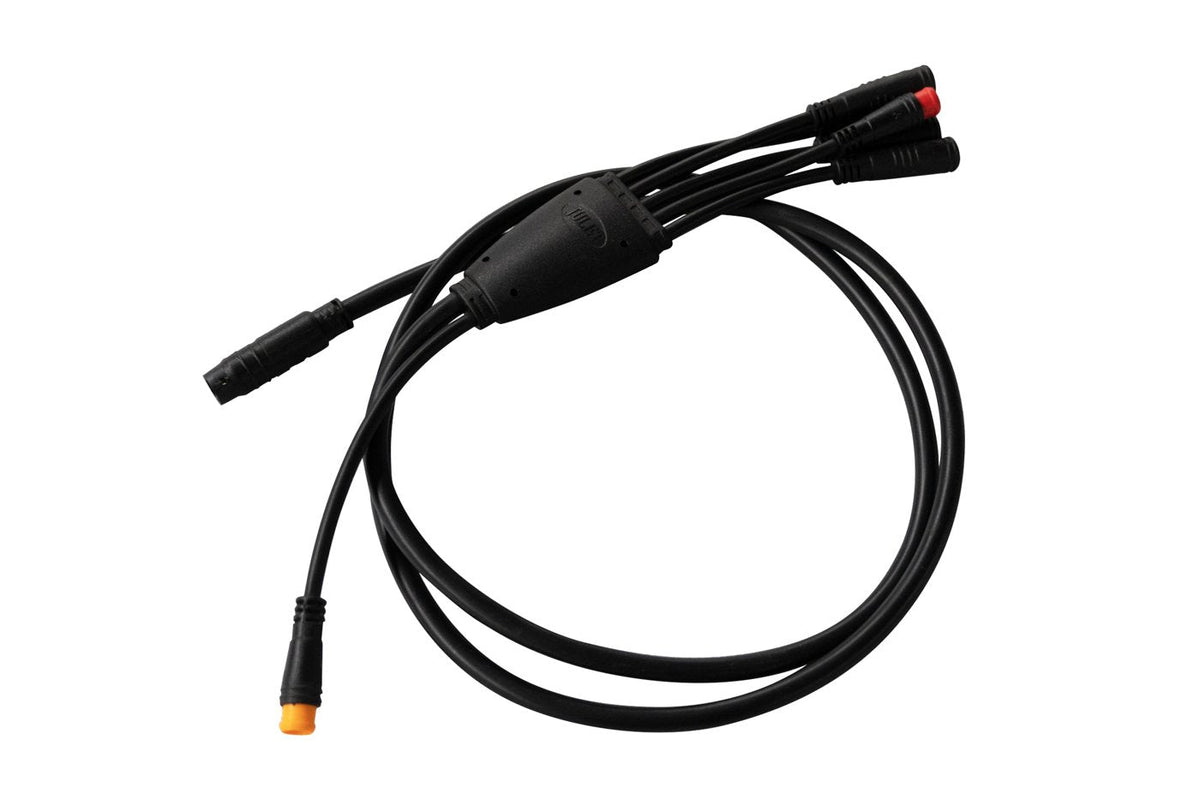

Coiled black e-bike main wiring harness on white: a thick trunk cable enters a moulded black junction block fanning out into four short leads with round black waterproof connectors, one red-insert, one black-insert, plus an orange-insert lead.

Something on your e-bike has stopped working, and the two parts everyone suspects first are the controller and the display. They are also the two parts most often replaced unnecessarily. Before you order either one, it is worth spending fifteen minutes proving which of them is actually at fault — or whether the real problem is neither.

Here is a decision path you can run with no special tools.

What each part actually does

The controller is the power stage and the logic. It takes battery voltage in, drives the motor phases out, reads the throttle, the brake cutoff, and the pedal-assist sensor, and decides how much current the motor gets.

The display is the interface. It shows speed and battery level, lets you change assist level, and stores parameters like wheel size and voltage class. It does not drive the motor. That distinction is the whole basis of the test below.

Step 1: does the screen light up?

Turn the system on and watch the display.

  • Screen lights up. The supply path — battery, fuse, main power connector — is basically intact. Do not order a controller yet.
  • Nothing at all. This is a supply problem before it is a component problem. Check the battery, the fuse, and the main power connector first; our power chain checklist walks that path in order.

Step 2: does the throttle drive the motor?

With the rear wheel off the ground, twist the throttle.

  • The motor runs. Then the battery, controller, motor and main wiring are all working. Whatever is broken sits in the pedal-assist path — usually the sensor gap, a knocked-loose connector, or an assist level reset to zero. Replacing the controller here fixes nothing.
  • The screen is lit but the motor does nothing. Now you are looking at the controller, the throttle, or a brake cutoff switch stuck in the “pulled” position. Check both brake levers return fully before you suspect anything expensive, then test the throttle — it is the cheaper part to swap.

Step 3: the trap — a lit screen is not a working link

This is the single most expensive misreading in the whole process. A display that powers up has proved only that it is receiving power. It has not proved that the data link to the controller works.

The link is only confirmed when all three of these are true:

  • the speed readout shows real numbers while the wheel turns
  • the assist level can actually be changed
  • settings such as wheel size and voltage class can be read and saved

If the screen glows but speed stays blank and the assist buttons do nothing, you have a communication failure, not a dead display.

When the answer is “both”

Communication is the layer that decides this. Mechanical fit and electrical ratings are comparatively forgiving; the controller-to-display protocol is not. Across the common families — KT, the “No.2” UART group, APT, and the closed brand systems — parts are generally not interchangeable, and three rules cause most of the failures:

  • Same model number does not mean same protocol. Some units ship in different firmware variants, and on certain displays a parameter can switch which protocol is spoken. Two identical-looking screens can behave differently.
  • Same brand does not mean compatible. A controller and a display from one maker can still refuse to talk if the firmware generations differ.
  • Plugging in without an error is not proof. The connector fitting and the screen waking up tell you nothing about the data link.

That is why a matched controller-and-display set is the safer purchase when the fault is genuinely in one of those two parts: the pairing has already been tested together. A single display on its own is only a sound choice when you can confirm the exact model and connector you already have — the reasoning is spelled out in why a new display may not work with your controller.

Before you order anything, take four photos

These four are what makes a compatibility answer possible at all:

  • the front of the display, sharp enough to read the model marking — see how to identify your display model
  • a close-up of the display connector, showing pin count, gender and colour
  • the controller body with its label, so voltage and current ratings are legible
  • the motor cable connector, so the wire count is visible

Two safety rules

Power down, remove the battery, and wait before unplugging anything — unplugging phase wires with power connected can arc and destroy the controller output stage. And after any electrical work, confirm on flat open ground at low speed that the brake cutoff still kills motor power before you ride.
